Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine

  • 1
  • 2
  • 3

Brand Name : TGMCO

Certification : SGS

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : $20000-$45000/set

Payment Terms : L/C, T/T

Delivery Time : 5 sets per month

Packaging Details : Export standard sea package with film and steel, other spare parts and some small parts are packed in plywood box

Name : Rack & Shelf Roll Forming Machine

Use : Pallet and Rack

Material : Steel, Galvanized

Feeding Width : 100-800mm

Material Thickness : 1.5-3.0mm

Roller Drive Type : Gear Box or Chiain

Forming Station : About 14-18 stations

Main Motor Power : 11-35kw

Forming Speed : 10-20m/min

Production Speed : 5-10m/min

Roller Material : Gcr15, Quench HRC58-62 Plated Chrome

Shaft Diameter : 70-100mm

Shaft Material : High Grade 45# Steel

Cutting Blade Material : Cr12 with Quenched Treatment 60-62 °

Cutting Type : Hydralic cutting

Hydraulic Power : 5.5-7.5kw

Control System : PLC

Contact Now

Shelves Pillar Storage Racks Roll Forming Making Machine

Raw Materil:PPGI,PPGL, GI,GL
Thickness:0.8-1.5mm
Roller Station:11 Steps
Shaft Material :45#Steel
Roller Material :Cr12
Transport :Gear Transport
Forming Speed :15m/min
Motor Power :3kw
Voltage :380V 50HZ 3Phase
Cutting System ;Hydraulic Cutting
Control System :Detal PLC
The whole line including: Manual decolier, roll forming machine, hydraulic station, PLC control system, Hydraulic cutter, run-out-table

Technical parameters

Items Items Specifications
Material of coil Material Width 100-800mm
Material Thickness 1.5-3.0mm
Decoiler 5 tons
Feeding&Leveling 5 Rollers Leveling 2rollers up, 3rollers down
Forming system Forming Speed 10-20m/min
Forming Stations about 14-18 stations
Roller Material Gcr15, Quench Hrc58-62, Plated Chrome
Shaft diameter 60-90mm
Shaft Material High Grade 45# steel
Main Motor Power 15-35kw
Machine structure Archway or wall panel
Transmission Gear box or chain
Cutting system Hydraulic Power 5.5-7.5kw
Cutting blade Cr12Mov,quenching HRC 58-62
Tolerance +-1.5mm
Electrical control system Electric Source 380V, 50HZ,3 phase
PLC Control System Siemens/Panasonic

Machine components

No. Name Qty
1 5T Decoiler 1
2 Feeding Device 1
3 Main Roll Former 1
4 Hydraulic Cutting 1
5 PLC Control 1
6 Hydraulic Station 1
7 Output Table 2

Profile drawing

Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine

Working flow

Decoiler—Feeding&Leveling—Main Roll forming—Cutting—Output table

Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine

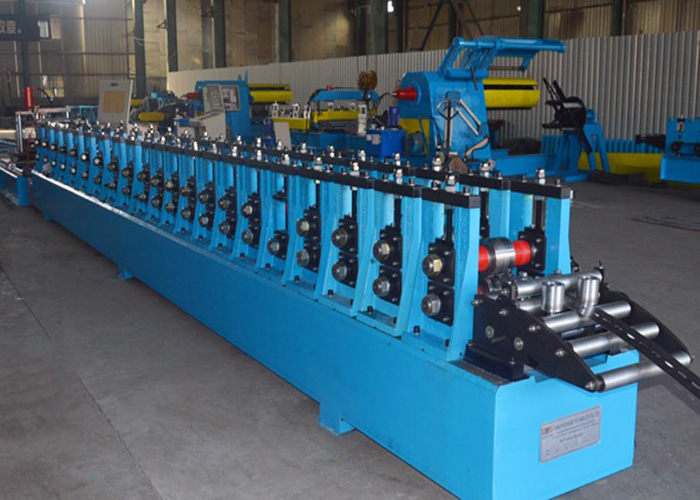

Picture for reference

Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine

Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine

Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine

FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest airport to your company?
A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
A: Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements

Packing & Delivery

Warehouse System Shelves Pillar Storage Racks Roll Forming Making Machine
